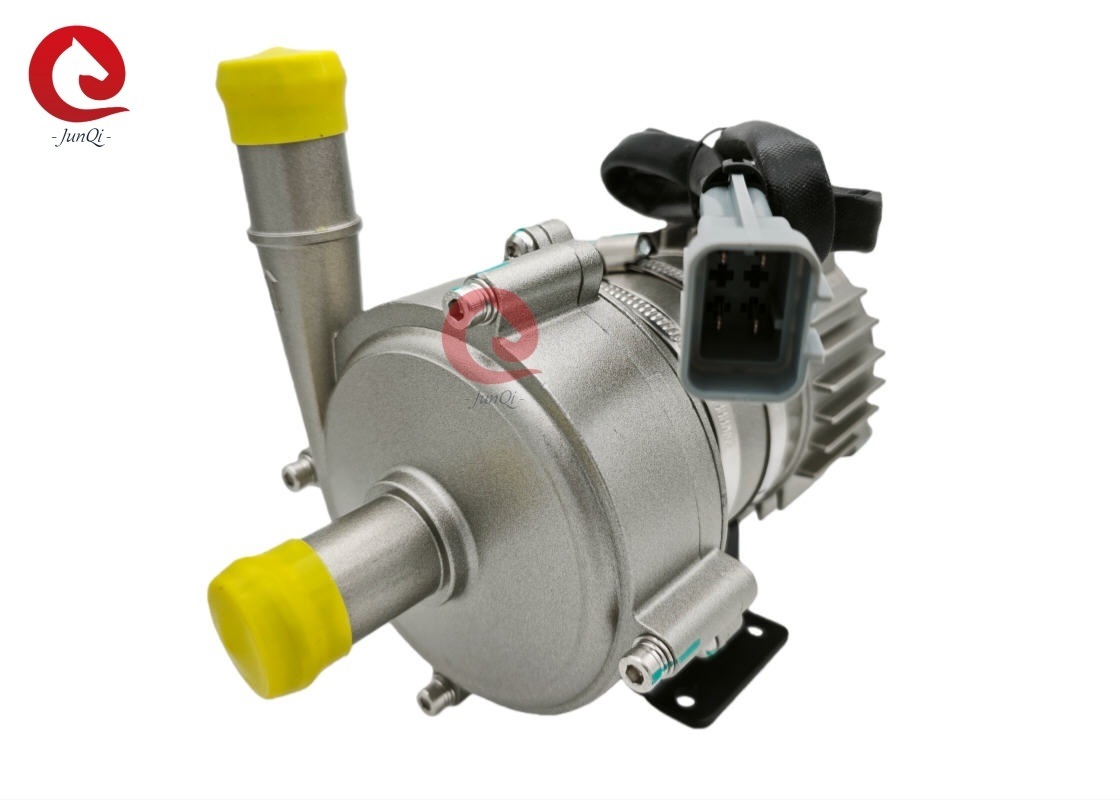

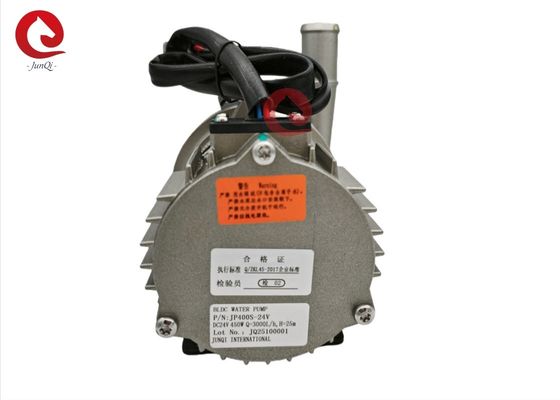

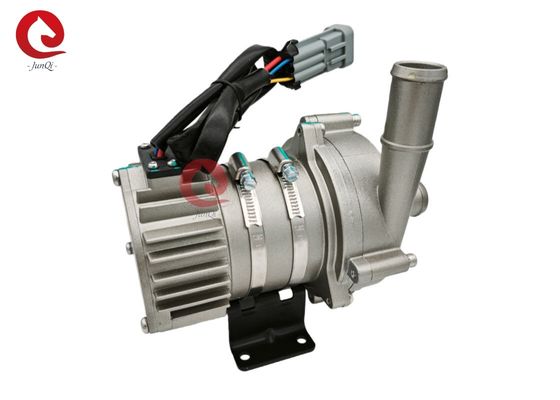

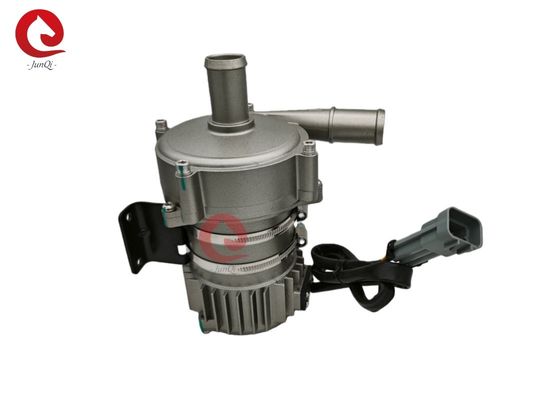

JUNQI 24VDC 450W Brushless DC Water Pump JP400S-24V For Coolant Circulation System
Water Pump features:
♦ Positive and negative electrode misconnection protection function;
♦ Soft start protection, small starting current;
♦ DC brushless motor high reliability, low thermal power, motor efficiency up to 90% energy saving better;
♦ Low noise, long service life.
Technical Parameters:
| JP400S-24V |
| Item |
Description |
| Rated Voltage |
DC24V |
| Rated Currrent |
≤20A |
| Operating voltage |
DC18-32V |
| Rated Power |
450W |
| Working Environment |
-40~85℃ |
| Working Medium |
50% glycol aqueous solution |
| Protection level |
IP68 |
| Working noise |
≤60dB ( Distance 1m) |
| Working life |
≥20000h |
| Weight |
2.8kg |
| Protection function |
Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |
Working Performance curve:
Dimensions:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System
